Introduction to Valve Sizing: A Step-by-Step Guide

In industrial applications and process control, the correct valve size is crucial for maintaining efficiency, safety, and system longevity. In fact, improper valve sizing can lead to many common causes of valve failure, including cavitation, flashing, erosion, vibration, and corrosion.

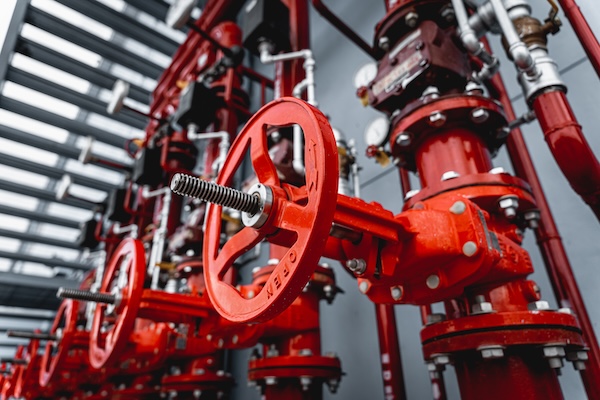

Correct valve sizing is crucial for reliable and efficient operation. Image used courtesy of Adobe



In this guide, we'll discuss the critical aspects of valve sizing to help you select the right size valves for your operations.



Understanding Valve Sizing

Valve sizing is the process of ensuring a valve is appropriately matched to its intended application, guaranteeing efficient and reliable performance. It involves calculating and selecting the correct valve size to handle a system's specific flow rates, pressures, and fluid characteristics.

At its core, valve sizing matches the valve’s flow capacity to the system’s requirements. The primary goal is to select a valve that can handle the maximum flow rate while maintaining control over the flow and avoiding issues like cavitation and excessive pressure drops.

The following subsections will explain what to know about how valve sizing works.



Flow Coefficient (C_v)

The flow coefficient is central to valve sizing. It represents the volume of water at 60 °F that can flow through the valve in one minute with a 1 PSI pressure drop. A higher C_v indicates a higher flow capacity. The C_v value is used to compare the flow capacities of different valves and helps in selecting the appropriate size.



Nominal Pipe Size (NPS) and Diameter Nominal (DN)

These standards are essential in valve sizing. NPS refers to the nominal diameter of the pipe in inches, while DN is its metric equivalent. Understanding these measurements and their implications on system operations is crucial, as improper sizing can lead to inefficiencies and potential system damage.



Valve Sizing Calculations

The sizing process involves specific calculations to determine the required C_v for a given application. The basic formula used is:

$$C_v = Q \sqrt{\frac{SG}{\Delta P}}$$

where:

C_v = Flow coefficient

Q = Flow rate (usually in gallons per minute, GPM)

SG = Specific gravity of the fluid

△P = Pressure drop across the valve (in pounds per square inch, PSI)

This calculation helps explain how much fluid can pass through the valve under any given conditions.



Fluid Dynamics

Valve sizing must consider the nature of the fluid being controlled—its viscosity, density, and flow characteristics. Different fluids behave differently when passing through a valve, impacting the sizing decision.



Sizing Charts and Software Tools

Manufacturers provide sizing charts, C_v calculators, and software tools to assist in selecting the right valve size. These resources take into account various factors, including flow rate, pressure drop, and fluid characteristics, to recommend the appropriate valve size.

Note that C_v calculations can be extremely complex, and it is best to use these tools for basic estimates only.



System Requirements

The valve must be sized to meet the specific demands of the system, including the flow rates required under different operating conditions. Correct sizing ensures that the valve performs effectively throughout the system’s operational range.



Factors to Consider in Valve Sizing

To ensure the valve functions correctly under various operational conditions and integrates seamlessly into your system, consider the following:



Flow Rate Requirements

Flow rate refers to the speed at which fluid travels through the system and is commonly expressed in gallons per minute (GPM) or liters per minute (LPM). To ensure accuracy, calculate it based on the valve’s port size, not the pipe size. An accurate flow rate prevents inefficiencies and potential damage.



Pressure Drop

Pressure drop, the decrease in fluid pressure due to frictional losses, must be accurately calculated to avoid cavitation and maintain system efficiency. Proper pressure drop considerations prolong the valve’s lifespan.



Pipe Diameter

The pipe diameter influences flow rate and system pressure. It must match the valve’s NPS (or DN) to ensure seamless integration and optimal performance, avoiding flow restrictions and inefficiencies.



Application Requirements

Different applications have unique needs for valve sizes, materials, or configurations. For example, high-temperature environments require heat-resistant materials, while systems with corrosive fluids need corrosion-resistant valves. Understanding these requirements ensures the valve meets all operational demands.



Application requirements may also impact selction of acutation type: manual, pneumatic, or electric. Images used courtesy of Gemini Valve



A Step-by-Step Guide to Valve Sizing

Sizing a valve involves several critical steps, each intended to ensure that the selected valve meets the operational requirements of your system. Following this structured 5-step approach enables you to systematically address each aspect of valve selection and ensure optimal performance and reliability:

1. Determine flow rates.
2. Calculate flow coefficient, C_v.
3. Select valve type and material.
4. Account for pressure drop and cavitation.
5. Confirm system compatibility

Now, let’s look at each of these steps in a little more detail.

1. Determine Flow Rates: Identify your system's maximum and minimum flow rates. This data is crucial for selecting a valve that can handle the entire range of flow conditions.

2. Calculate C_v: Once you’ve determined your system's flow rate and pressure drop, you’ll need to calculate the flow coefficient. This value helps you select a valve that can efficiently handle the fluid dynamics of your system. The C_v calculation integrates these parameters to guide you in choosing the right valve size, ensuring optimal performance and minimal pressure loss.

3. Select Valve Type and Material: Choose a valve type and material that match the application's requirements. Consider factors like fluid characteristics, temperature, and pressure.

4. Account for Pressure Drop and Cavitation: Ensure that the valve can handle the pressure drop across it without causing cavitation. Cavitation can damage the valve and affect system performance.

5. Confirm System Compatibility: Verify that the selected valve fits the system's design and operational parameters. Compatibility ensures seamless integration and optimal performance.



7 Common Valve Sizing Mistakes to Avoid

Incorrect valve sizing can lead to numerous issues affecting system performance and longevity. Here are seven mistakes you should avoid to ensure more reliable and efficient valve operation.

1. Overlooking System Dynamics: Ignoring system dynamics, such as changes in flow direction, velocity, and turbulence, can result in improper valve selection and performance issues.

2. Misjudging Fluid Properties: Selecting a valve without considering fluid properties like viscosity and corrosiveness can lead to improper functioning and accelerated wear. Choose materials that withstand the fluid’s specific properties.

3. Underestimating Pressure Drops: Failing to calculate pressure drops accurately can cause cavitation and other issues. Ensure the valve can handle the pressure differentials in your system.

4. Ignoring Future System Expansions: Choosing a valve without considering future system expansions can limit flexibility. Select a valve that accommodates current and future system requirements.

5. Neglecting Specific Valve Requirements: Each type of valve has unique characteristics and sizing considerations. Understanding these nuances is essential for proper selection.

6. Failing to Account for Temperature and Pressure Variations: Valves must be sized to handle variations in temperature and pressure conditions. Ensure the valve can operate across the full range of expected conditions.

7. Choosing Incompatible Valve Materials: Using valve materials incompatible with the process fluid can cause corrosion, leaks, and premature failure. Select materials resistant to the specific chemicals and conditions of your application.



Sizing Considerations for Common Valve Types

Different types of valves offer unique advantages and are suitable for specific applications. Understanding the sizing considerations for each type of valve helps you select the most appropriate valve for your system. The following table provides sizing considerations for five common valve types.



Valve Type	Sizing Considerations
Ball Valves	Cavitation prevention Ensure the valve size is adequate to prevent cavitation, which can damage the valve and affect system performance.	Pressure drop management Select a valve that can handle the required flow rates and pressures to avoid excessive pressure drops and maintain system efficiency.
Gate Valves	Flow restrictions Choose a valve size that avoids flow restrictions, ensuring smooth operation.	Pipeline diameter matching Match the valve size with the pipeline diameter to prevent turbulence and pressure loss.
Globe Valves	Pressure drop management Select a valve that effectively manages the pressure drop to ensure efficient flow control.	Fluid characteristics Ensure the valve design accommodates the specific fluid characteristics and operational conditions.
Butterfly Valves	Flow rate handling Ensure the valve can handle the required flow rates and pressures without compromising performance.	Pressure drop minimization Select a valve design that minimizes pressure drop and avoids cavitation.
Diaphragm Valves	Material compatibility Ensure the valve material is compatible with the specific chemicals and temperatures encountered in the application.	Fluid characteristics Select a valve size that matches the fluid characteristics and operating conditions.



A Final Word on Valve Sizing

Proper valve sizing is the key to optimizing your system's performance and ensuring its longevity. By taking the time to accurately size your valves, you prevent common issues and enhance efficiency. Remember, a properly sized valve is not just a component; it's a crucial part of your system's success.
